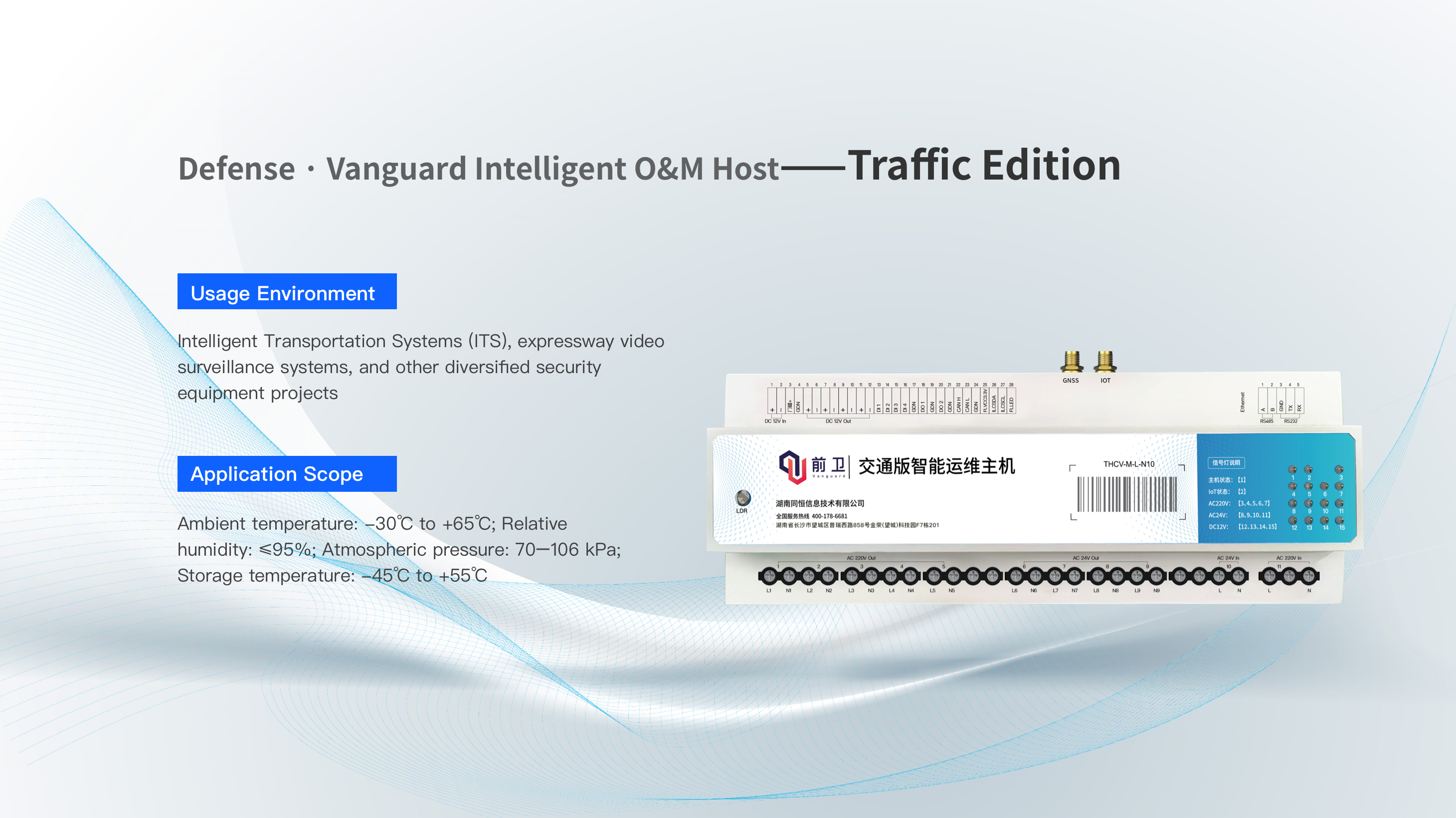

Defense · Vanguard Intelligent O&M Host——Traffic Edition
The Defense · Vanguard O&M host adopts an integrated design, incorporating AC power interfaces, DC power interfaces, network transmission interfaces, and sensor interfaces.It supports functions such as mains power failure detection, network transmission monitoring, device power consumption monitoring, temperature-controlled fans, remote control, temperature monitoring, and anti-theft monitoring.It can precisely diagnose various faults including mains power failure, DC power failure, optical fiber failure, camera power supply failure, camera network cable failure, and device failure. This effectively addresses issues such as delayed detection and handling of front-end equipment failures. It improves maintenance efficiency, reduces overall maintenance costs, and contributes to systematic and standardized management of maintenance operations.The product is available in three series: "Simplified Edition", "Standard Edition", and "Traffic Edition", each designed for different application fields based on interface and functional requirements.
Product parameters
| Model | Defense · Vanguard Intelligent O&M Host-Traffic Edition | |
|---|---|---|
| IoTGNSS | - | 4G Module |
| - | Beidou / GPS | |
| Channel/Protection Current | DC | 12V/2A*4 |
| AC | 220V/3A*5,24V/3A*4 | |
| Total Load Power | - | 96W/2200W |
| Interfaces | Communication interface | 1 × RJ45 10/100M adaptive Ethernet port; 1 × RS485 interface; 1 × RS232 interface; 1 × CAN bus interface |
| 輸出接口 | 1 × 12V/1.5A cooling fan output; 2 × DO outputs | |
| 輸入接口 | 1 × door magnetic input; 4 × dry contact inputs | |
| 一般規(guī)范 | 工作溫度和濕度 | -40 to 85°C, humidity < 95% (non-condensing) |
| 電源供應(yīng) | DC12V | |
| 運(yùn)行功耗 | 1.2W | |
| 尺寸（mm） | 250mm*90mm*65mm | |
| Functional Modules | GNSS Positioning | |
| Reverse Connection Protection for DC Input | ||
| Remote Restart | ||
| Light Sensing Monitoring | ||
| Vibration Detection | ||
| Electrical Anomaly Alarm | ||
| Surge Protector Failure Monitoring | ||
| Temperature & Humidity Monitoring | ||
| QR Code / Remote Door Unlocking |
The above parameters are for reference only. Actual product may vary.
Functional characteristics
Real-time autonomous device inspection for precise localization of fault nodes
Dual-network active-active ensures 7×24×365 reliable monitoring
GNSS positioning chip
Accurate asset location
Industrial-grade energy metering accuracy (up to Class 1.0) for precise measurement of front-end equipment energy consumption
Remote device reboot for quick resolution of soft faults
Electronically controlled enclosure lock supports QR code unlocking and remote unlocking
