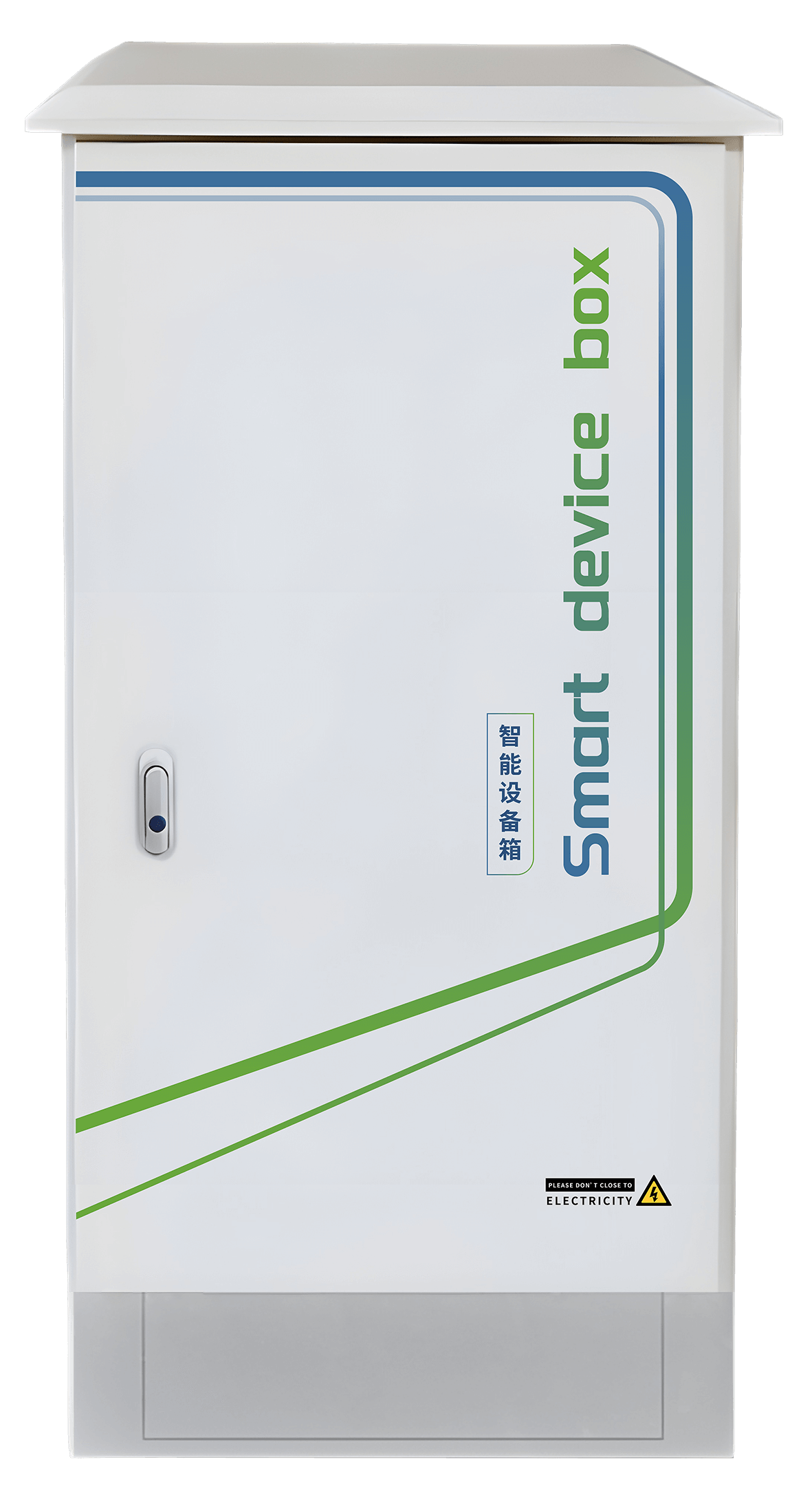

Intelligent Device Enclosure —— "Vast" Series
The "Vast" Series intelligent equipment enclosure adopts a standard cabinet structure design, with internal space meeting the installation requirements of rack-mounted equipment. Suitable for outdoor environments, it features rainproof, dustproof, aging-resistant, rust-resistant, and intelligently controlled capabilities, along with quick installation. The interior includes a power surge protector, power distribution unit, fiber splicing tray, cooling fan, and door switch. It is designed for video surveillance applications such as the Sharp Eyes Project, Safe City, and Intelligent Transportation System checkpoints.
Functional characteristics
Integrated Design
Integrates AC power interfaces, DC power interfaces, network transmission interfaces, and sensor interfaces. Compared to independent modular designs, it reduces connection wiring and potential failure points.
Detailed Fault Analysis
Capable of identifying over 10 types of faults, including mains power failures, DC abnormalities, fiber optic faults, cable failures, and device hardware failures. Utilizes a multi-tier detection mechanism combining power supply monitoring, network diagnostics, and channel inspection at the front end, with back-end platform verification to enable real-time and efficient analysis of video system faults.

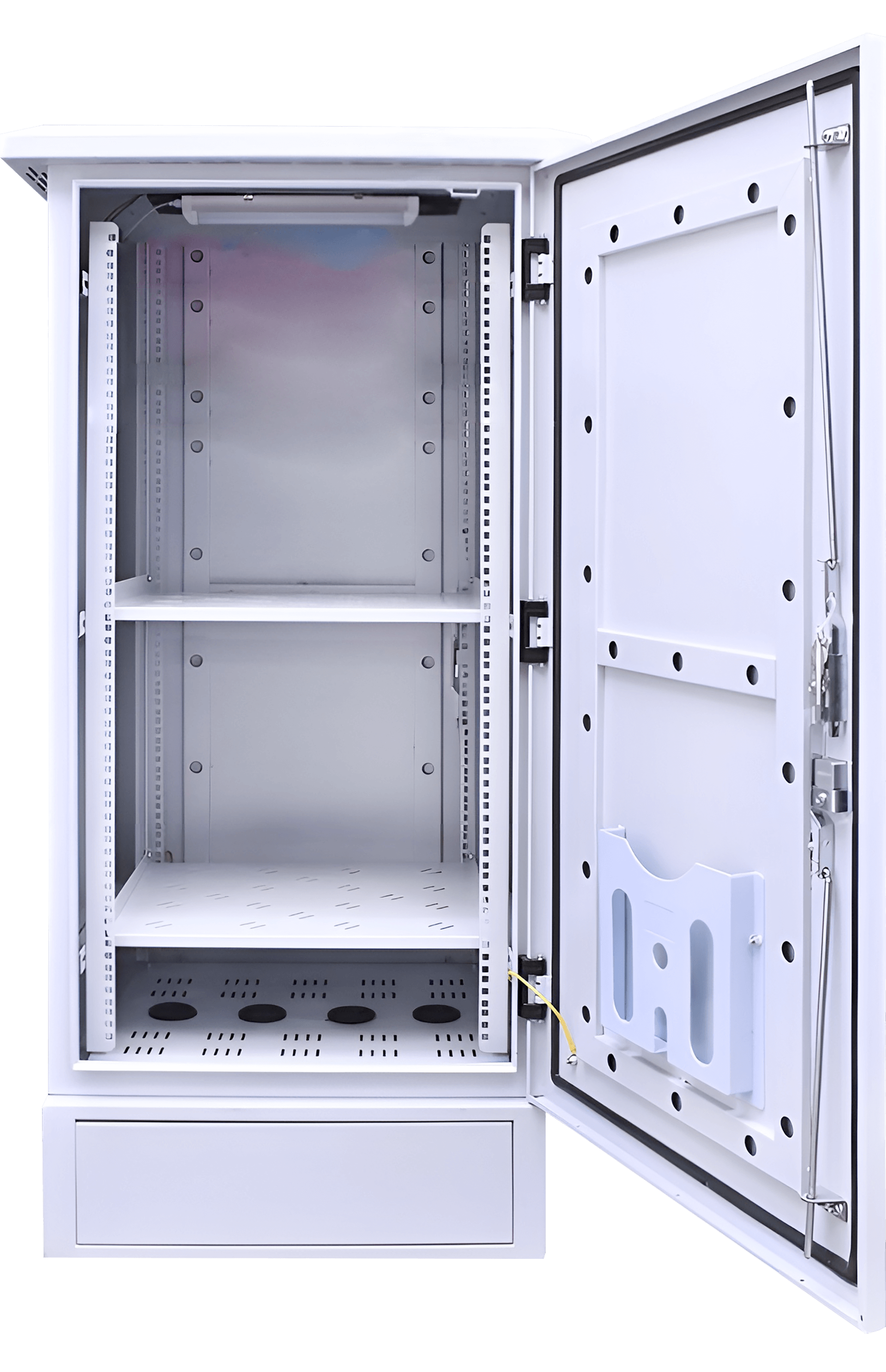

Spacious Interior
Ample internal space is reserved for equipment installation, featuring standard electrical mounting panels for power devices. The vertical posts on both sides allow flexible adjustment of shelf positions.
Multiple Power Specifications
Supports power output interfaces including AC220V, AC24V, DC12V, and DC5V. Each power circuit features independent detection and control, adapting to the power requirements of cameras in various scenarios.
Industrial-Grade Security and High-Reliability Design
Zero-interruption power supply technology ensures continuous power delivery to video surveillance cameras even during system reboots or failures, maintaining uninterrupted video services throughout the restart process.
Product description
Efficient Heat Dissipation & Temperature Control
Turbocharged fan with horizontal airflow, utilizing aerodynamic and thermodynamic principles to optimize cooling performance.
Independent Modular Architecture
Expansion modules are independently designed and customizable to meet personalized needs. Each expansion module has clearly defined functions and interfaces, and modules operate independently for easier disassembly and maintenance.
Waterproof, Snowproof, Lightning-Resistant, and Durable
Designed to withstand harsh outdoor conditions including sandstorms, thunderstorms, and salt spray. Built-in foam rubber waterproof gasket provides excellent sealing, corrosion resistance, and aging resilience.
Professional Industrial Coating Design
Customized designs tailored to customer r equirements, application scenarios, value propositions, and functional needs.
Adaptable to Various Installation Methods
Mature installation solutions ensure robust and secure mounting. Supports wall-mounting, pole-mounting, and ground installation. The enclosure offers a load-bearing capacity of 1000 kg.
Independent Modular Architecture
Expansion modules are independently designed and customizable to meet personalized needs. Each expansion module has clearly defined functions and interfaces, and modules operate independently for easier disassembly and maintenance.
Product parameters
| "Vast" Series | |||||||
|---|---|---|---|---|---|---|---|
| Model | THCB-V | Brand | Defense · Vanguard | ||||
| External Dimensions (W×H×D) | 600 × 1450 × 450 | 箱內(nèi)尺寸（W*H*D) | 597 × 1197 × 397 | ||||
| Weight (kg) | 72.8KG | Material | SGCC (Hot-Dip Galvanized Steel) | ||||
| Opening Method | Right-Hinged Door | Color |
|
||||
| Protection Rating | IP55 | Cable Entry | Bottom Entry | ||||
| Power Input | AC220V | Air Duct Type | Top Air Duct | ||||
| Operating Temperature | 環(huán)境溫度-30℃～+65℃ | Operating Humidity | Relative Humidity: ≤ 95%, Atmospheric Pressure: 70 ~ 106Kpa, Storage Temperature: -45℃～+55℃ | ||||
| Expansion Ports | The system supports 1/2/4/6/8 routing ports, 2/4/6/8 switching ports, controllable output ports including DC5V, DC9V, DC12V, DC36V, and AC220V, and is compatible with both surge protection modules and communication modules. | ||||||
| Standard List | Modules | Customization | |||||
| Features |
1. Based on ARM architecture and SoC technology, with built-in MQTT and Ethernet modules, the system enables mains power failure detection, temperature-controlled fan operation, remote control, network transmission monitoring, and internal cabinet temperature monitoring. It interacts in real time with the monitoring center via IoT or metropolitan area networks, and proactively alerts the center in the event of network interruption, equipment failure, mains power interruption, or excessive internal cabinet temperature for comprehensive power and network outage monitoring. 2. Supports 2G/4G and other networks for IoT data transmission, with modes including wireless, wired, automatic wired/wireless switching, and wireless backup. 3. Security protection function: The system supports external door magnetic sensor detection, generating alerts when the enclosure door is abnormally opened. It also features a built-in speaker module that can output local warning sounds to deter malicious tampering with the enclosure, ensuring maximum protection for assets and information security inside the enclosure. 4. Positioning function: GNSS automatic positioning supports automatic acquisition of latitude and longitude, automatically marks location information on the platform map, and tracks location changes with real-time updates. 5. Intelligent early warning: Video recording integrity check, optical fiber link fault detection, server abnormality detection, local hardware fault detection, and camera failure detection, etc. 6. Light sensing monitoring: A light sensing monitoring function that distinguishes between three levels of light conditions inside the enclosure (low light, moderate light, and strong light) on the platform, assisting in determining whether the enclosure door is open. 7. Electrical Health Monitoring: Input voltage, output current, and load power monitoring with customizable thresholds on the platform; alerts for voltage, current, and power anomalies. 8. Temperature and humidity monitoring: Real-time internal temperature and humidity tracking with user-defined thresholds via the client interface; alerts for exceeding/falling below set values via the client interface, indicating excessively high or low temperature/humidity conditions. 9. Vibration monitoring: Detects shocks or impacts to the enclosure and triggers vibration alerts on the platform. Allows users to set frequency thresholds for vibration alarms. 10. Power outage monitoring: Built-in power monitoring module distinguishes between regional power failures (e.g., mains outage) and internal power failures (e.g., circuit breaker trip) without requiring backup power; alerts are uploaded to the client platform with dedicated outage status icons. 11. Network disconnection monitoring: Alerts will be shown on the platform when network connectivity is lost within the enclosure. 12. Remote control: Remote activation, deactivation, and reboot of load power supply to resolve front-end device freezes; remote activation/deactivation of voice alarms. 13. Uninterrupted load power supply: Continuous power delivery to the internal circuits even if the intelligent operation and maintenance terminal itself fails, provided that the external power supply is functioning normally, ensuring that all internally powered devices maintain uninterrupted operation. 14. Remote upgrade: Supports remoter system updates via the client platform. 15. APP integration: Bi-directional data synchronization between mobile app and client platform, enabling real-time updates of issue lists, work order statuses, processing progress, and image uploads. |
||||||
The above parameters are for reference only. Customization is available based on customer requirements. Actual specifications may vary.
