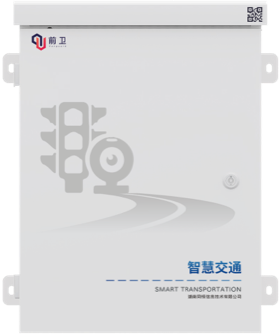

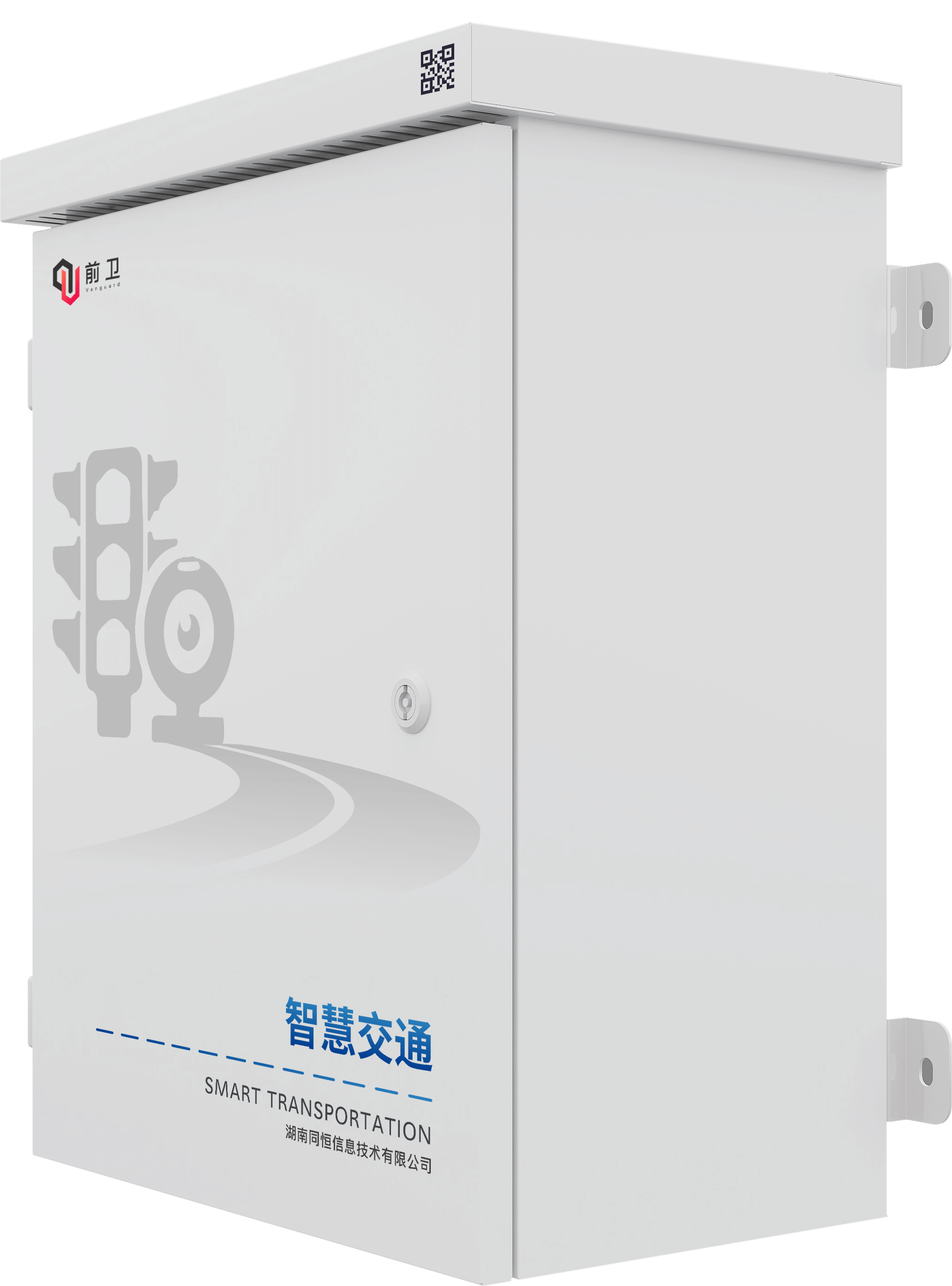

Intelligent Device Enclosure —— "Peak" Series

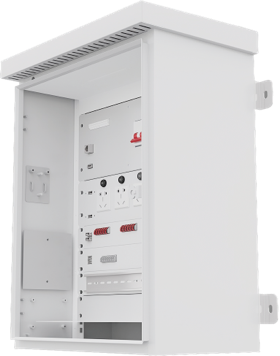

Designed for all-weather outdoor use in exposed environments, the "Peak" Series intelligent device enclosure incorporates internal components such as AC expansion modules, DC expansion modules, data port expansion modules, switching port expansion modules, routing port expansion modules, fiber splicing trays, cooling fans, cable fixing bases, and door locks. Internal components feature modular installation, allowing each unit to be replaced independently. It is suitable for intelligent buildings, smart residential communities, integrated monitoring systems, intelligent security video surveillance, Safe City monitoring, and Sharp Eyes projects.

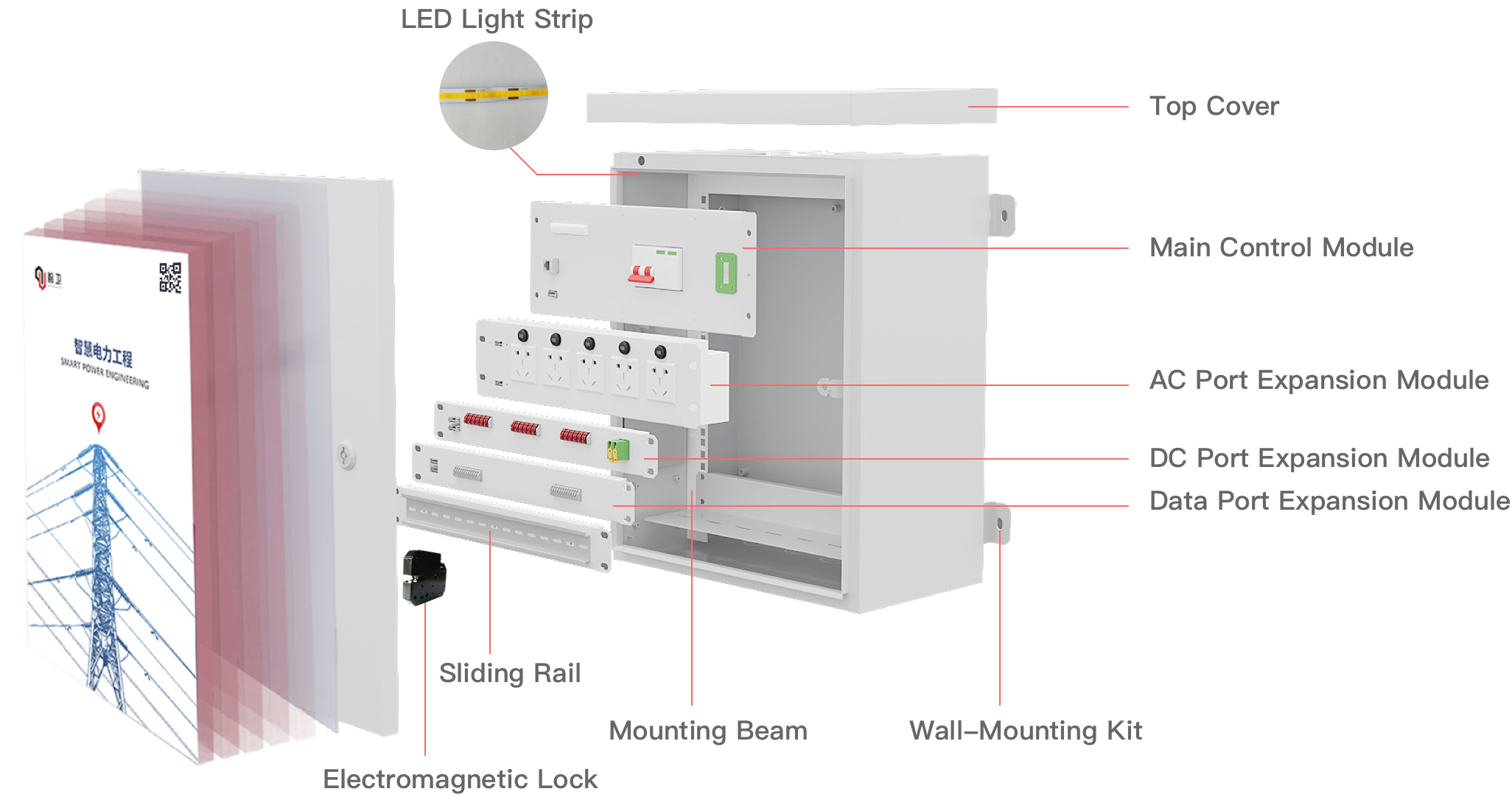

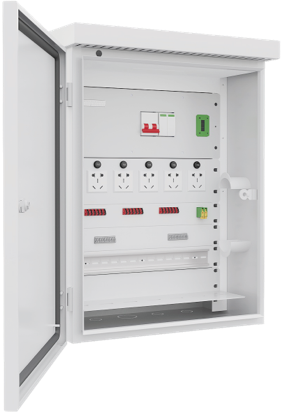

Box structure
Functional characteristics
Flexible Combination of Service Circuit Boards - Customizable On Demand
A wide range of circuit boards is available, including main control modules, AC expansion modules, DC expansion modules, data port expansion modules, switching port expansion modules, and routing port expansion modules, which can be easily installed and tailored to different application scenarios, offering flexible configuration.
Precise Fault Localization for Rapid Troubleshooting
Accurately distinguishes between mains power, network, and equipment failures, with detailed fault analysis. Supports detection of various anomalies including mains power abnormalities, overvoltage, fiber faults, temperature/humidity deviations, unauthorized door opening, and enclosure vibration.
Industrial-Grade Security and High-Reliability Design
Designed to operate within industrial temperature ranges and featuring professional outdoor lightning protection, the system includes power supply safeguards against short-circuit. Zero-interruption power supply technology ensures continuous power delivery to video surveillance cameras even during system reboots, maintaining uninterrupted video services throughout the restart process.
Diverse Power Interfaces & Various Data Transmission
The system provides multiple power supply modules including AC220V, AC24V, DC12V, and DC36V. Each port supports remote control and data transmission via wired, 4G, and other methods. It also offers compatibility with multiple interfaces including RS232, RS485, CAN, I2C, DI, and DO.
Product description
Efficient Heat Dissipation & Temperature Control

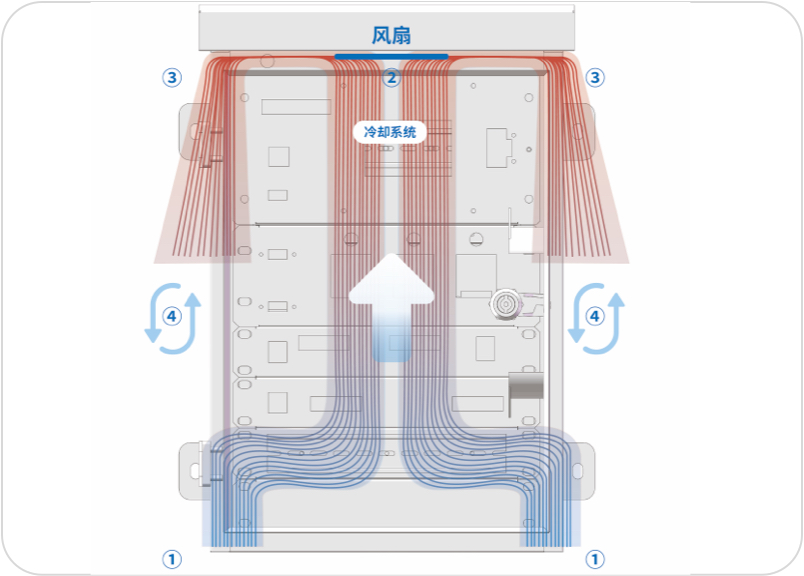

Turbocharged fan with horizontal airflow, utilizing aerodynamic and thermodynamic principles to optimize cooling performance.
Independent Modular Architecture

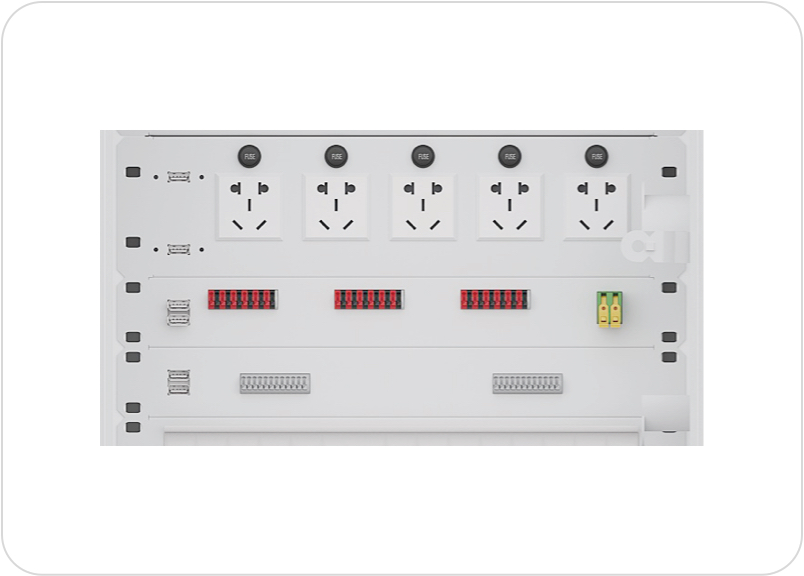

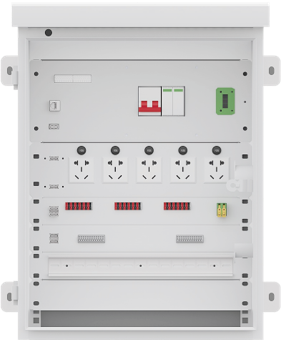

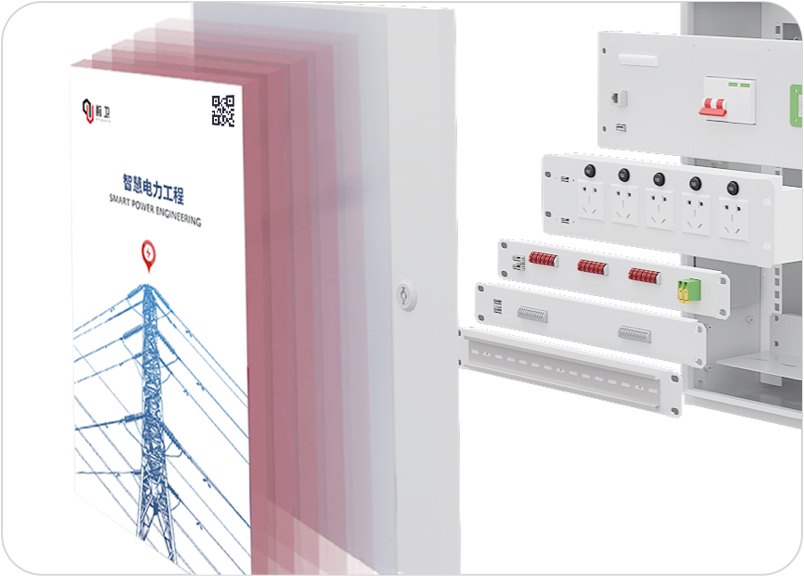

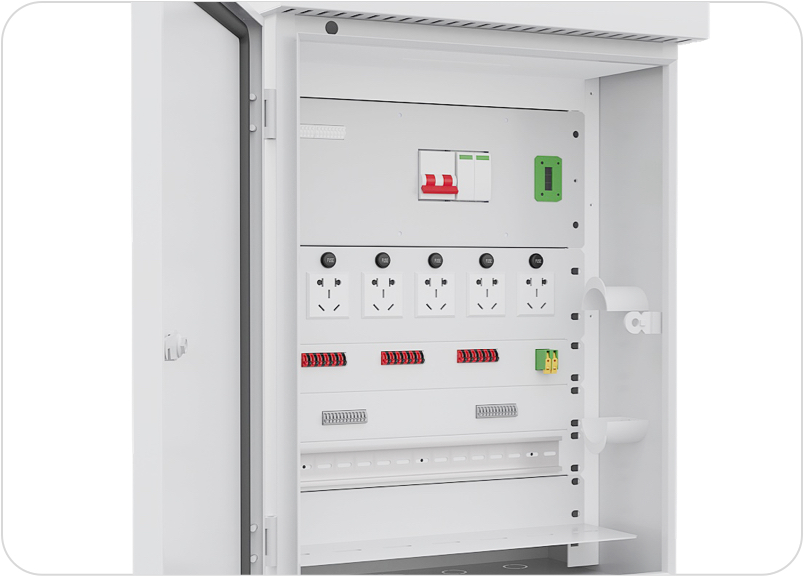

Expansion modules are independently designed and customizable to meet personalized needs. Each expansion module has clearly defined functions and interfaces, and modules operate independently for easier disassembly and maintenance.
Waterproof, Snowproof, Lightning-Resistant, and Durable

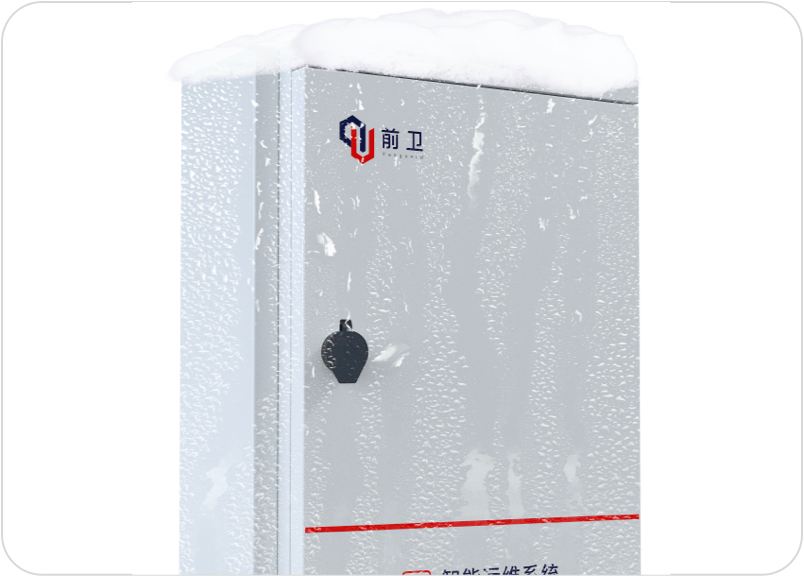

Designed to withstand harsh outdoor conditions including sandstorms, thunderstorms, and salt spray. Built-in foam rubber waterproof gasket provides excellent sealing, corrosion resistance, and aging resilience.
Professional Industrial Coating Design
Customized designs tailored to customer r equirements, application scenarios, value propositions, and functional needs.
Adaptable to Various Installation Methods

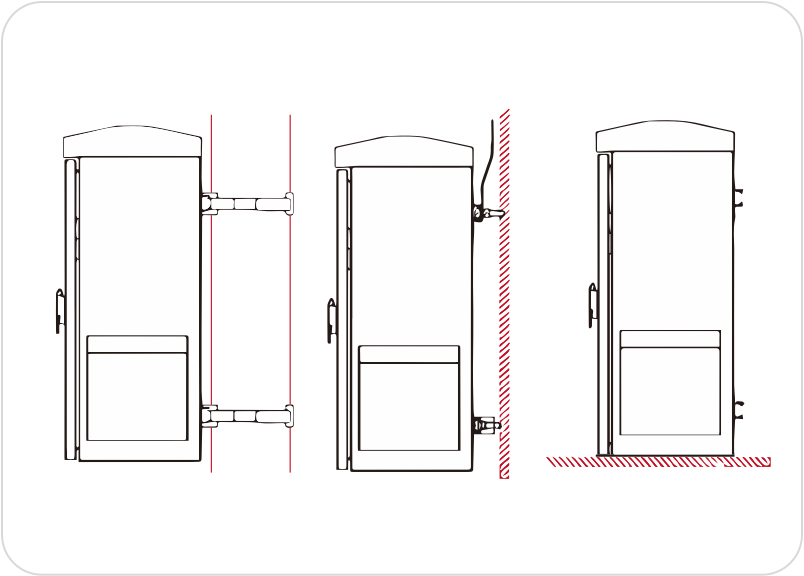

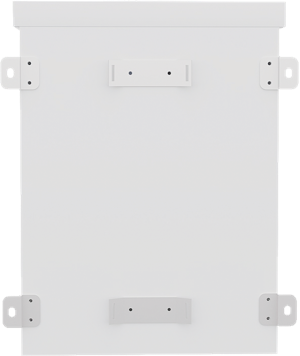

Mature installation solutions ensure robust and secure mounting. Supports wall-mounting, pole-mounting, and ground installation. The enclosure offers a load-bearing capacity of 1000 kg.
Independent Modular Architecture
Expansion modules are independently designed and customizable to meet personalized needs. Each expansion module has clearly defined functions and interfaces, and modules operate independently for easier disassembly and maintenance.
Product parameters
| "Peak" Series | ||||
|---|---|---|---|---|
| Model | THCB-P | Brand | Defense · Vanguard | |
| Opening Method | Left-Hinged Door | Material | SGCC (Hot-Dip Galvanized Steel) | |
| Protection Rating | IP55 | Color |
|
|
| Power Input | AC220V | Cable Entry | Bottom Entry | |
| Operating Temperature | Ambient temperature: -30℃～+65℃ | Air Duct Type | Top Air Duct | |
| Operating Humidity | Relative Humidity: ≤ 95%, Atmospheric Pressure: 70 ~ 106Kpa, Storage Temperature: -45℃～+55℃ | |||
| Expansion Ports | The system supports 1/2/4/6/8 routing ports, 2/4/6/8 switching ports, controllable output ports including DC5V, DC9V, DC12V, DC36V, and AC220V, and is compatible with both surge protection modules and communication modules. | |||
| Standard Configuration (Model A) | Modules | THMC-MGLTE4-1202: Main Control Module (Metering + Positioning + LTE Cat4 Communication);THCE-DC012-03A-06S: 1× DC12V Input; 6× DC12V/3A Output Module; THCE-AC220-10A-03S: 1× AC220V Input; 3× AC220V/10A Output Module;THCS-R-08GS: 8-Port 10/100/1000M Adaptive Switching Module; THDD-24CI-0402: Data Transparent Transmission Module | ||
| Accessories | 2-In-1 Antenna, Isolation Switch, Surge Protector (40KA), Electromagnetic Lock, Cooling Fan, Fiber Splicing Tray, Mesh Mounting Panel, Cable Fixing Base, Fiber Spool, Light Sensor, Vibration Sensor, Pole/Wall Mounting Kit | |||
| Features |
1. Material: The enclosure is constructed from high-quality 1.0mm thick cold-rolled steel plate with spray-coated surface finish, providing waterproof, dustproof, and corrosion-resistant properties. 2. Configuration: Includes a 2P 32A isolation switch and a 40KA power surge protector. 3. Features: ◇Based on ARM architecture and SoC technology, with built-in MQTT and Ethernet modules, the system enables mains power failure detection, temperature-controlled fan operation, remote control, network transmission monitoring, and internal cabinet temperature monitoring. It interacts in real time with the monitoring center via IoT or metropolitan area networks, and proactively alerts the center in the event of network interruption, equipment failure, mains power interruption, or excessive internal cabinet temperature for comprehensive power and network outage monitoring. ◇Supports 2G/4G and other networks for IoT data transmission, with modes including wireless, wired, automatic wired/wireless switching, and wireless backup. ◇Positioning function: GNSS automatic positioning supports automatic acquisition of latitude and longitude, automatically marks location information on the platform map, and tracks location changes with real-time updates. ◇Intelligent early warning function: Video recording integrity check, optical fiber link fault detection, server abnormality detection, local hardware fault detection, and camera failure detection, etc. ◇A light sensing monitoring function that distinguishes between three levels of light conditions inside the enclosure (low light, moderate light, and strong light) on the platform, assisting in determining whether the enclosure door is open. ◇Electrical health monitoring: Input voltage, output current, and load power monitoring with customizable thresholds on the platform; alerts for voltage, current, and power anomalies. ◇Temperature and humidity monitoring: Real-time internal temperature and humidity tracking with user-defined thresholds via the client interface; alerts for exceeding/falling below set values via the client interface, indicating excessively high or low temperature/humidity conditions. ◇Vibration Monitoring: Detects shocks or impacts to the enclosure and triggers vibration alerts on the platform. Allows users to set frequency thresholds for vibration alarms. ◇Power outage monitoring: Built-in power monitoring module distinguishes between regional power failures (e.g., mains outage) and internal power failures (e.g., circuit breaker trip) without requiring backup power; alerts are uploaded to the client platform with dedicated outage status icons. ◇Network disconnection monitoring: Alerts will be shown on the platform when network connectivity is lost within the enclosure. ◇Remote control: Remote activation, deactivation, and reboot of load power supply to resolve front-end device freezes; remote activation/deactivation of voice alarms. ◇Uninterrupted load power supply: Continuous power delivery to the internal circuits even if the intelligent operation and maintenance terminal itself fails, provided that the external power supply is functioning normally, ensuring that all internally powered devices maintain uninterrupted operation. ◇Remote upgrade: Supports remoter system updates via the client platform. ◇QR Code / Remote Unlocking: The enclosure door is equipped with an electromagnetic lock, which together with the intelligent O&M host module enables remote unlocking and on-site unlocking via mobile QR code scanning. ◇APP integration: Bi-directional data synchronization between mobile app and client platform. ◇Includes 3-year warranty and IoT communication service fees. |
|||
| Model A | Model B | ||
|---|---|---|---|
| External Dimensions (W×H×D) | 400 × 550 × 250 | External Dimensions (W×H×D) | 350 × 480 × 170 |
| Internal Dimensions (W×H×D) | 398 × 487 × 229 | Internal Dimensions (W×H×D) | 328 × 408 × 153 |
| Weight (kg) | 16KG | Weight (kg) | 15KG |
The above parameters are for reference only. Parameters for Model B are subject to the actual product. (Both Model A and Model B can be customized according to customer requirements)
